Widespan Roller Shutters for Large Openings in Perth WA
Widespan Roller Shutters are roller shutters engineered for residential openings that are wider than a standard shutter profile can span: large windows, sliding and stacker doors, and open-plan living areas. They use a stronger curtain profile and supporting components, are suitable for widths up to 4500mm and heights up to 3000mm (manufacturer-rated, subject to wind exposure and site conditions), and can be manually or motorised operated. They suit homeowners who want to cover a wide opening with a single shutter rather than dividing it into sections, but every installation should be confirmed with a professional site measure, since maximum achievable size reduces with wind exposure and other site-specific factors.
Product Highlights
Wider Opening Spans
Engineered specifically for residential openings that are wider than a standard shutter profile can span.
Reinforced Curtain Profile
A larger, more rigid aluminium slat with strengthened supporting components for greater span capability.
Manual or Motorised
Choose manual operation or motorised control suited to the size and weight of the curtain.
Built for Perth's Climate
Helps manage strong summer sun, UV exposure and seasonal storms with wind-driven rain.
Manufacturer-Engineered Limits
Suitable for widths up to 4500mm and heights up to 3000mm, manufacturer-rated, subject to wind exposure.
Professional Site Assessment
Every installation begins with measuring the opening and assessing its technical requirements.
Why Choose Widespan Roller Shutters?
Large windows and sliding doors have become a defining feature of many Perth homes, creating brighter living spaces and stronger connections between indoor and outdoor entertaining areas. While these larger openings offer significant lifestyle benefits, they also introduce challenges that standard-sized roller shutter systems may not always be designed to accommodate.
Widespan Roller Shutters are engineered specifically for larger residential openings. They use stronger curtain profiles and supporting components that allow wider spans while maintaining smooth operation and long-term reliability when correctly specified and installed.
For homeowners, the result is the ability to protect larger areas of glazing without dividing the opening into multiple smaller shutters. Depending on the installation, Widespan Roller Shutters can provide improved privacy, external light control, additional security, weather protection and greater control over solar heat entering the home.
Selecting the correct shutter should never be based on opening width alone. Factors such as the building structure, exposure to wind, the weight of the curtain, operating method and manufacturer design limits all influence whether a Widespan system is the most appropriate solution.
At Perth Roller Shutters & Blinds, every installation begins with measuring the opening and assessing its technical requirements before recommending the most suitable roller shutter system.
What Makes a Widespan Roller Shutter Different?
Although Widespan Roller Shutters perform the same fundamental role as standard residential shutters, they are designed to manage the additional engineering demands created by wider openings.
The principal difference is the curtain profile. Widespan systems typically use a larger and more rigid aluminium slat than standard residential shutters, allowing the curtain to span greater widths while reducing flex during operation. Supporting components, including the axle, guide rails and headbox, are also selected to suit the increased size and weight of the shutter.
Because larger shutters place greater loads on the operating system, motorisation is commonly recommended. Electric operation provides smoother movement, reduces manual effort and helps maintain consistent performance over time, particularly where shutters are used frequently.
Despite their increased capacity, Widespan Roller Shutters are still intended for residential applications. Every product has manufacturer-specified limits for width, height and overall curtain weight. Openings that exceed these limits may require an alternative shutter profile or another engineered solution.
Understanding these differences helps homeowners choose a product that is matched to the size and function of the opening rather than assuming one roller shutter system suits every situation.
Where Are Widespan Roller Shutters Most Commonly Used?
Widespan Roller Shutters are typically selected for areas of the home where modern architectural design incorporates larger expanses of glazing than those found in older residential properties.
Common applications include:

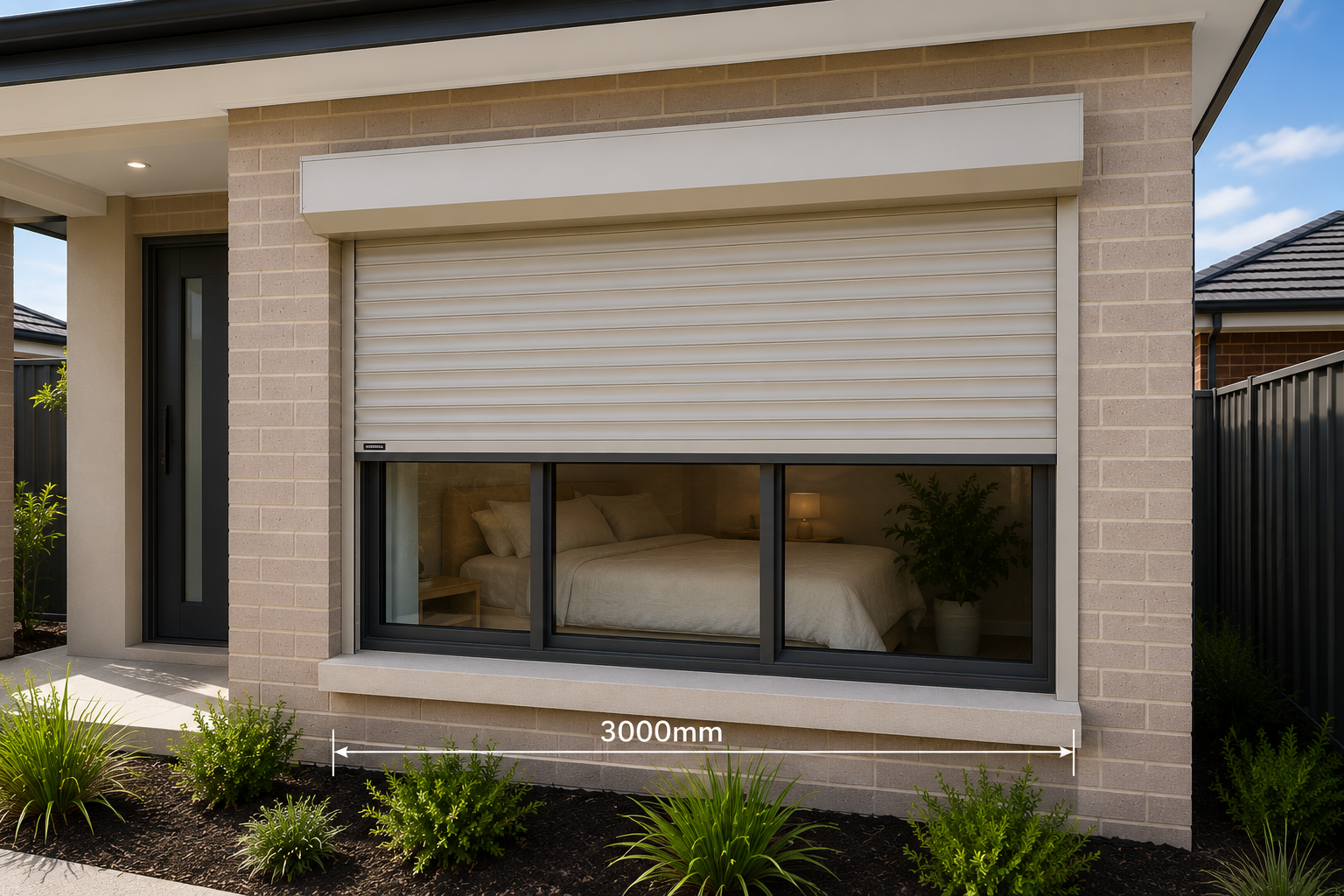

Wide front feature windows.
Large living room windows.

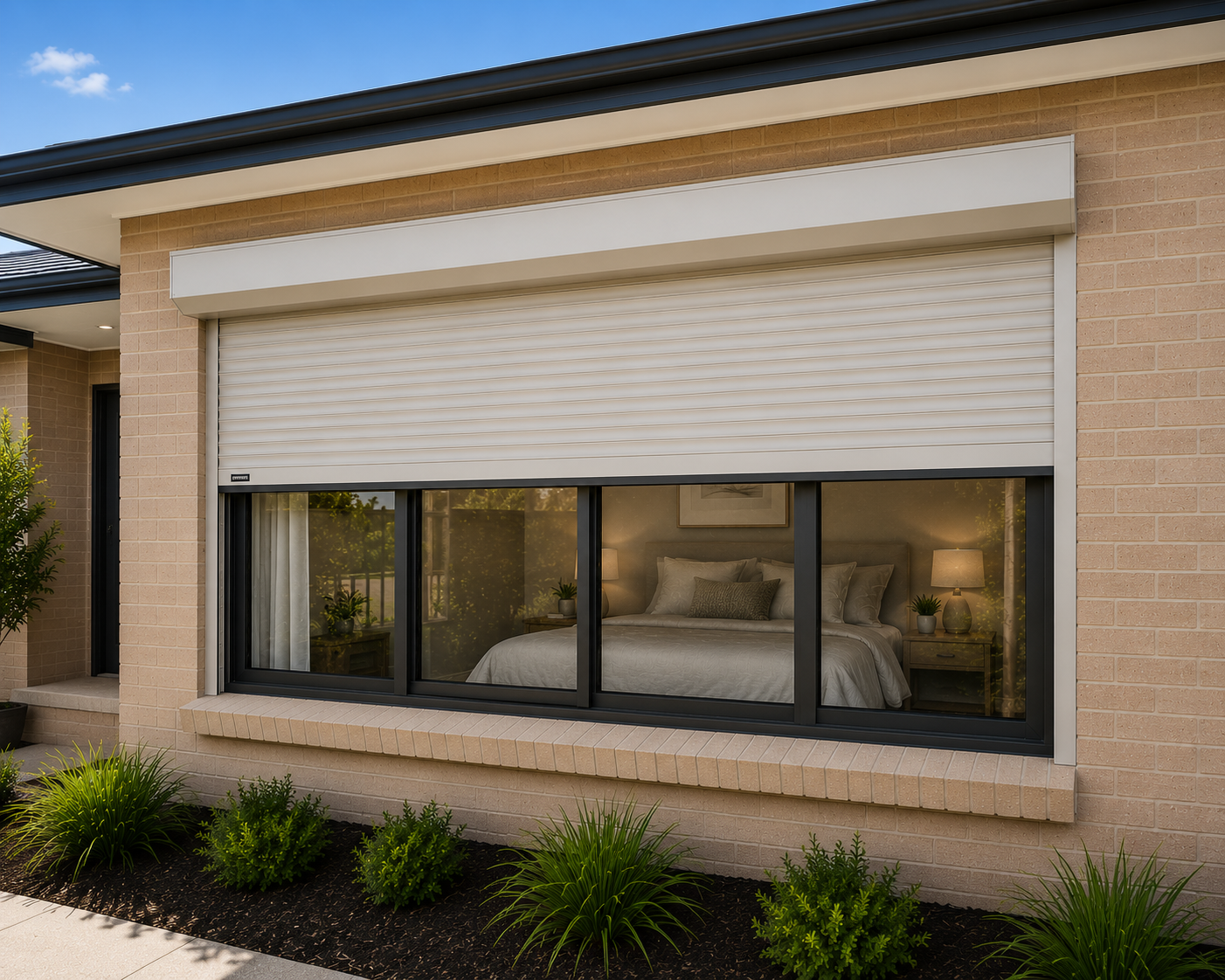

Sliding glass doors.
Stacker doors.
Family room glazing.

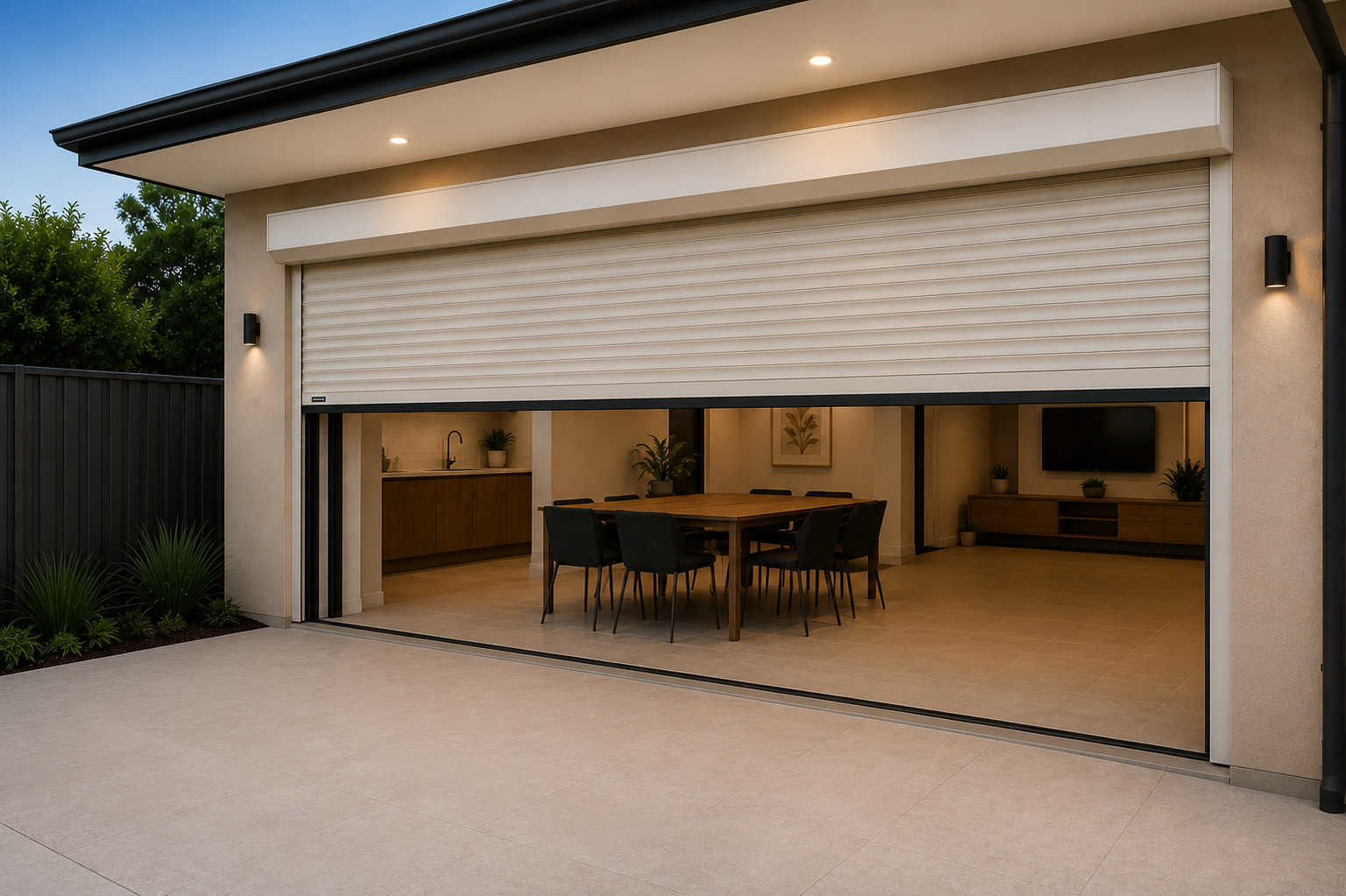

Rear entertaining areas.
Alfresco openings requiring external protection.

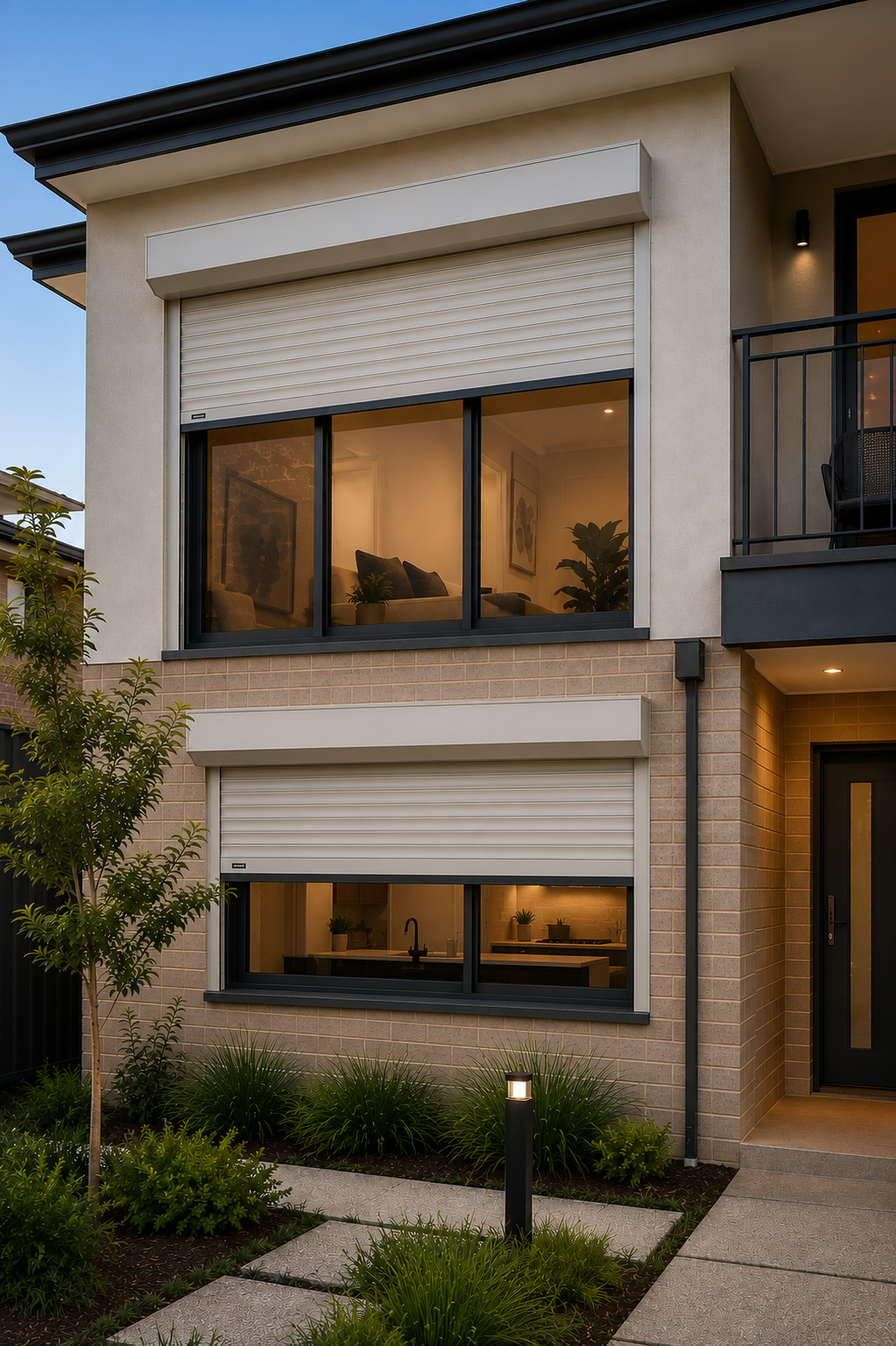

Contemporary homes with open-plan layouts.
Many newer Perth homes include substantial north-facing or west-facing glazing to maximise natural light. While this creates attractive living spaces, it can also increase summer heat gain and afternoon sun exposure. Appropriately specified external roller shutters provide homeowners with greater control over these environmental conditions while also improving privacy and protecting glazing during severe weather events.
Beyond wide residential windows and doors, the Widespan profile is also manufactured to suit domestic doorways, garage doors, and, for owners with light-commercial or mixed-use properties, shopfronts, windows, countertops and serveries. The range extends to entry-level protection for factories, warehouses, clubs, pubs, hotels, restaurants, pharmacies and sports complexes. These broader applications reflect the manufacturer's own product range rather than a change in this page's residential focus; each is included here for completeness rather than as a suggestion that every application suits every opening.
The suitability of a Widespan Roller Shutter depends on the dimensions of the opening, the surrounding building structure and compliance with the manufacturer's engineering specifications rather than simply the style of the home.
How Widespan Roller Shutters Are Constructed
Although Widespan Roller Shutters look similar to standard residential shutters when installed, the components behind the curtain are selected to accommodate larger openings and heavier operating loads.
A typical Widespan Roller Shutter system consists of:
- Roll-formed aluminium curtain slats.
- Polyurethane foam-filled profiles (where specified by the manufacturer).
- Extruded aluminium guide rails.
- A heavy-duty axle assembly.
- A suitably sized roller drum.
- A bottom rail incorporating weather sealing.
- Manual or motorised operating equipment appropriate for the curtain size.
Each component is selected as part of a complete engineered system rather than as individual parts. The guide rails, axle, headbox and operating mechanism all work together to support the additional weight created by a wider shutter curtain.
Because manufacturers design these systems as complete assemblies, substituting components or exceeding published size limits may affect operation, longevity or warranty coverage. Professional specification helps ensure the finished installation remains within the manufacturer's intended operating parameters.
Technical Specifications
For the 55mm Widespan profile, published manufacturer specifications include:

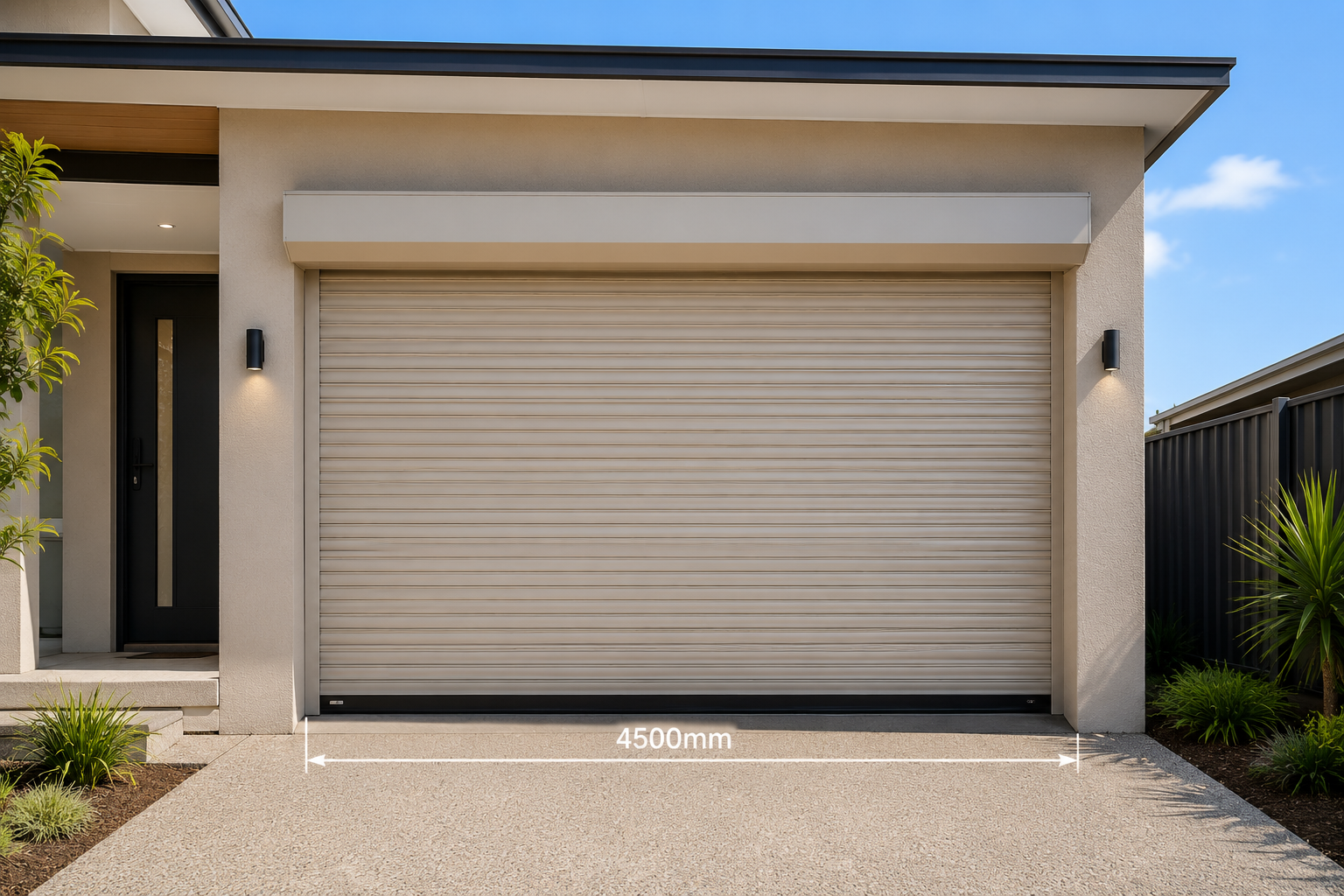

Maximum shutter width
4500mm
Maximum shutter height
3000mm
Maximum surface area
10m²
Curtain weight
4kg per square metre
Number of slats per metre
18
Profile slat covering
55mm
Profile slat thickness
12mm
Axle type
octagonal steel
Bottom bar dimensions
55mm × 8.5mm
Guide dimensions
68mm × 25mm/18mm
Paint finish
polyurethane/polyamide (PU/PA)
Inner profile foam
CFC-free polyurethane
These figures are manufacturer specifications for the 55mm Widespan profile. As with all roller shutter dimensions and performance figures, they are indicative only, may change without notice, and may vary in certain applications, for example wide openings without a solid structure behind the shutter. A professional site assessment remains the only way to confirm whether a specific opening falls within these limits.
Achievable shutter width also reduces as wind exposure increases. As a general guide, the manufacturer's engineering data shows maximum width reducing from 4500mm at lower wind speeds to as little as 2400mm in higher-wind conditions, with maximum height similarly governed by the size of pelmet selected. These figures are engineering guidance rather than guarantees and should always be confirmed for the specific site during a professional measure.
Colours and Appearance
Widespan Roller Shutters are available in a manufacturer colour range that allows the finished installation to complement a home's existing façade rather than stand out from it. Profile colours include Cream, Magnolia Cream, Clear Beige, White, Shale Grey, Black, Monument, Silver, Woodland Grey and Surfmist, with matching options available for pelmets, side frames, guides and bottom bars. Powder-coated finishes are available at additional cost for homeowners seeking a colour outside the standard range.
All profiles carry a double-coated, lacquered, abrasion-resistant painted finish as standard, supporting long-term appearance retention under Perth's UV exposure. For properties near the coast or other salt-water environments, Coastal Treatment is available for side frames and is worth discussing with your installer at the time of quoting.
As with all colour and finish information, available options may change over time. Confirming current colour availability during the quotation process is recommended before finalising a selection.
Manual or Motorised Operation?
Many homeowners ask whether a Widespan Roller Shutter can be operated manually or whether motorisation is necessary.
The answer depends primarily on the size and weight of the shutter curtain.
Smaller Widespan installations may be suitable for manual operation where permitted by the manufacturer's specifications. However, as curtain width and weight increase, motorisation generally becomes the preferred solution because it provides smoother operation while reducing the physical effort required to raise and lower the shutter.
Manual options include a spring-loaded system with key lock, a steel cable winder (rated up to 50kg), and a crank handle with 240V electric manual override.
Modern motorised systems can often be operated using:
- Remote controls.
- Wall-mounted switches.
- Multi-channel transmitters controlling several shutters.
- Home automation systems where compatible motor technology is installed, including solar-powered and 12V control options for installations without convenient mains access.
Control equipment of this kind is generally designed for indoor installation. For automated shutters, manufacturers commonly recommend additional safety measures, such as photo safety cells, a safety brake and/or a safety edge, particularly where the shutter is not in full view of the person operating it, for example when using a remote control or a wall switch positioned away from the shutter itself. Where a wall switch is used, a spring-return (deadman) switch is generally recommended.
The most appropriate operating method should be determined during the quotation process after measuring the opening and calculating the expected curtain weight. Selecting the correct operating system from the beginning helps achieve reliable long-term performance and a better day-to-day user experience.
The primary advantage of a Widespan Roller Shutter is its ability to protect larger openings using a system specifically designed for greater span capability.
When correctly specified and professionally installed, homeowners may experience benefits including:
Key Benefits for Larger Residential Openings
Sunlight Control
External control of sunlight entering large windows.
Privacy
Improved privacy when the shutter is closed.
Added Security
Additional physical security compared with unprotected glazing.
Glare Reduction
Reduced glare within living areas.
Furnishing Protection
Protection of furnishings from prolonged sun exposure.
Summer Comfort
Assistance in managing internal comfort during Perth's hot summer months.
Consistent Appearance
A consistent appearance across wide window and door openings.
Actual performance varies with the home's orientation, window size, installation quality, operating practices and the product selected. For this reason, Perth Roller Shutters & Blinds recommends assessing each opening individually rather than applying a single solution across an entire property.
Design Considerations Before Installation
Choosing a Widespan Roller Shutter involves more than measuring the width of an opening. A professionally specified system considers the interaction between the shutter, the building structure and the intended method of operation.
During a site assessment, installers typically evaluate:
- The overall width and height of the opening.
- Available headroom for the headbox.
- Structural fixing points around the opening.
- The location of brickwork, lintels or framing members.
- Access for installation and future servicing.
- Power availability where motorisation is proposed.
- The exposure of the opening to prevailing weather conditions.
These factors help determine whether a Widespan Roller Shutter is the most appropriate solution or whether another product should be considered. They also influence the size of the headbox, the operating system and the installation method.
Because every property is different, measurements taken during a professional site inspection provide the basis for a system that is designed to suit the specific opening rather than relying on standard assumptions.
Widespan Roller Shutters in Perth's Climate
Perth's climate presents conditions that make external window protection a practical consideration for many homeowners, particularly where homes feature large areas of glazing.
Common environmental factors include:
- Extended periods of strong summer sunshine.
- High ultraviolet exposure throughout much of the year.
- Afternoon heat affecting west-facing windows.
- Seasonal storms with wind-driven rain.
- Outdoor entertaining areas that benefit from improved control of sunlight and privacy.
Large windows and sliding doors can admit significant natural light while also allowing increased solar heat into living spaces during warmer months. External roller shutters provide homeowners with the ability to adjust the amount of sunlight entering the home throughout the day, helping them respond to changing weather and seasonal conditions.
The level of benefit varies depending on the orientation of the property, surrounding shade, window size and how the shutters are used. A site-specific assessment helps determine where Widespan Roller Shutters are likely to provide the greatest value.
Widespan Roller Shutters are an excellent solution for many larger residential openings, but they are not intended to be the answer for every situation.
A Widespan system is often appropriate when:
However, other products may be more suitable where:
Is a Widespan Roller Shutter the Right Choice?
Widespan May Suit You If
- The opening exceeds the practical size of a standard residential shutter.
- A single shutter is preferred over dividing the opening into multiple sections.
- The opening is a wide window or large sliding door.
- The homeowner wants a product specifically designed for wider spans.
Consider Another Option If
- The opening falls comfortably within the capabilities of a standard residential shutter.
- The dimensions exceed the manufacturer's maximum limits for the Widespan profile.
- The project has specialised architectural or engineering requirements.
- A commercial-grade shutter system is more appropriate.
The best outcome comes from matching the product to the application rather than selecting a shutter based solely on appearance or marketing claims. Measuring the opening, reviewing the building structure and confirming the manufacturer's specifications are all important steps before recommending the final solution.
The performance of a Widespan Roller Shutter depends not only on the product itself but also on the quality of the installation. Larger shutter systems place greater demands on mounting points, guide rail alignment and operating components than smaller residential shutters.
Professional installation typically includes:
Professional Installation Matters
Confirm Dimensions
Confirming the final opening dimensions.
Verify Fixing Points
Verifying suitable fixing locations.
Select Mounting Method
Selecting the appropriate mounting method.
Align Guide Rails
Ensuring the guide rails are correctly aligned.
Install Operating System
Installing the operating system in accordance with the manufacturer's requirements.
Test Operation
Testing the shutter through multiple operating cycles.
Final Adjustment
Adjusting the system to achieve smooth and consistent operation.
Like most external building products, Widespan Roller Shutters benefit from routine maintenance to help keep them operating efficiently.
Homeowners can generally assist by:
Looking After Your Widespan Roller Shutters
Clear Guide Channels
Removing leaves and debris from the guide channels.
Regular Washing
Washing external surfaces using mild detergent and clean water.
Coastal Rinsing
Rinsing shutters after exposure to coastal salt or heavy dust.
Visual Inspection
Visually inspecting the shutter for signs of damage or unusual wear.
Regular Operation
Operating the shutter regularly to help maintain smooth movement.
If a shutter begins operating unevenly, becomes noticeably noisier or does not travel smoothly, it is advisable to have the system inspected before the issue develops into a more significant repair.
For motorised systems, servicing should be carried out by appropriately qualified technicians using components compatible with the installed product.
Routine maintenance not only supports reliable operation but may also help maximise the service life of the shutter system.
Choosing the Right Widespan Roller Shutter
Not all roller shutter products are designed for the same applications. Selecting the right system involves matching the product to the opening, the home's construction and the homeowner's priorities rather than simply choosing the largest available shutter.
When comparing options, consider:
Whether the product is specifically engineered for wider residential openings.
The manufacturer's published size limitations.
The suitability of manual or motorised operation.
The quality and compatibility of the complete shutter system.
The installer's experience with larger residential shutters.
The availability of ongoing servicing and support.
A professional assessment allows the installer to recommend the most appropriate product based on measured dimensions and the intended use of the opening. In some cases, a standard residential shutter may be sufficient, while in others a Widespan profile provides the better long-term solution.
Choosing a roller shutter supplier involves more than selecting a product. Correct specification, accurate measurement and professional installation all contribute to the long-term performance of the finished system.
Perth Roller Shutters & Blinds takes an evidence-based approach by:
Why Homeowners Choose Perth Roller Shutters & Blinds
Individual Assessment
Assessing each opening individually rather than recommending a single solution for every home.
Correct Specification
Specifying products that are appropriate for the dimensions and intended application.
Transparent Guidance
Explaining the advantages and limitations of each product type.
Professional Measurement
Providing professional measurement before manufacture.
Compliant Installation
Installing systems in accordance with manufacturer requirements.
Ongoing Support
Supporting customers with servicing and maintenance when required.
This approach helps homeowners make informed decisions based on the technical suitability of the product rather than relying solely on promotional claims.
Request Professional Advice for Your Home
Every home is different, and the most suitable roller shutter depends on the size of the opening, the building structure and how the space is used.
If you're considering Widespan Roller Shutters for a large window, sliding door or other wide residential opening, a professional site assessment is the best way to determine the appropriate solution. Measuring the opening, reviewing installation requirements and confirming the manufacturer's specifications ensures the recommended product is suited to your home's needs.
Perth Roller Shutters & Blinds can provide expert advice on Widespan Roller Shutters and other residential shutter options, helping you choose a system that is designed for your property, your lifestyle and your long-term requirements.
Contact Us for Professional AdviceFrequently Asked Questions
A Widespan Roller Shutter is designed for larger residential openings and typically uses stronger curtain profiles and supporting components to accommodate greater spans while maintaining reliable operation within the manufacturer's specified limits.
Yes. They are commonly used for large sliding and stacker doors, provided the opening dimensions and structural conditions are suitable for the selected product.
They can be either manual or motorised, depending on the size and weight of the shutter. Motorisation is commonly recommended for larger systems to provide smoother operation.
Maximum dimensions vary between manufacturers and product ranges. A professional site measure is required to determine whether a particular opening falls within the engineered limits of the selected system.
Yes. When closed, they provide an additional level of privacy by screening windows and doors from outside view.
Yes. As an external window covering, they allow homeowners to control the amount of sunlight entering the home by adjusting the position of the shutter.
Yes. They are generally manufactured to suit the measured dimensions of each opening to ensure the finished system fits correctly.
Routine cleaning and periodic inspection help maintain smooth operation. If a shutter shows signs of unusual wear or operational issues, professional servicing is recommended.
Not always. Suitability depends on the opening dimensions, building structure and the manufacturer's engineering specifications. Some projects may require an alternative product or engineered solution.
