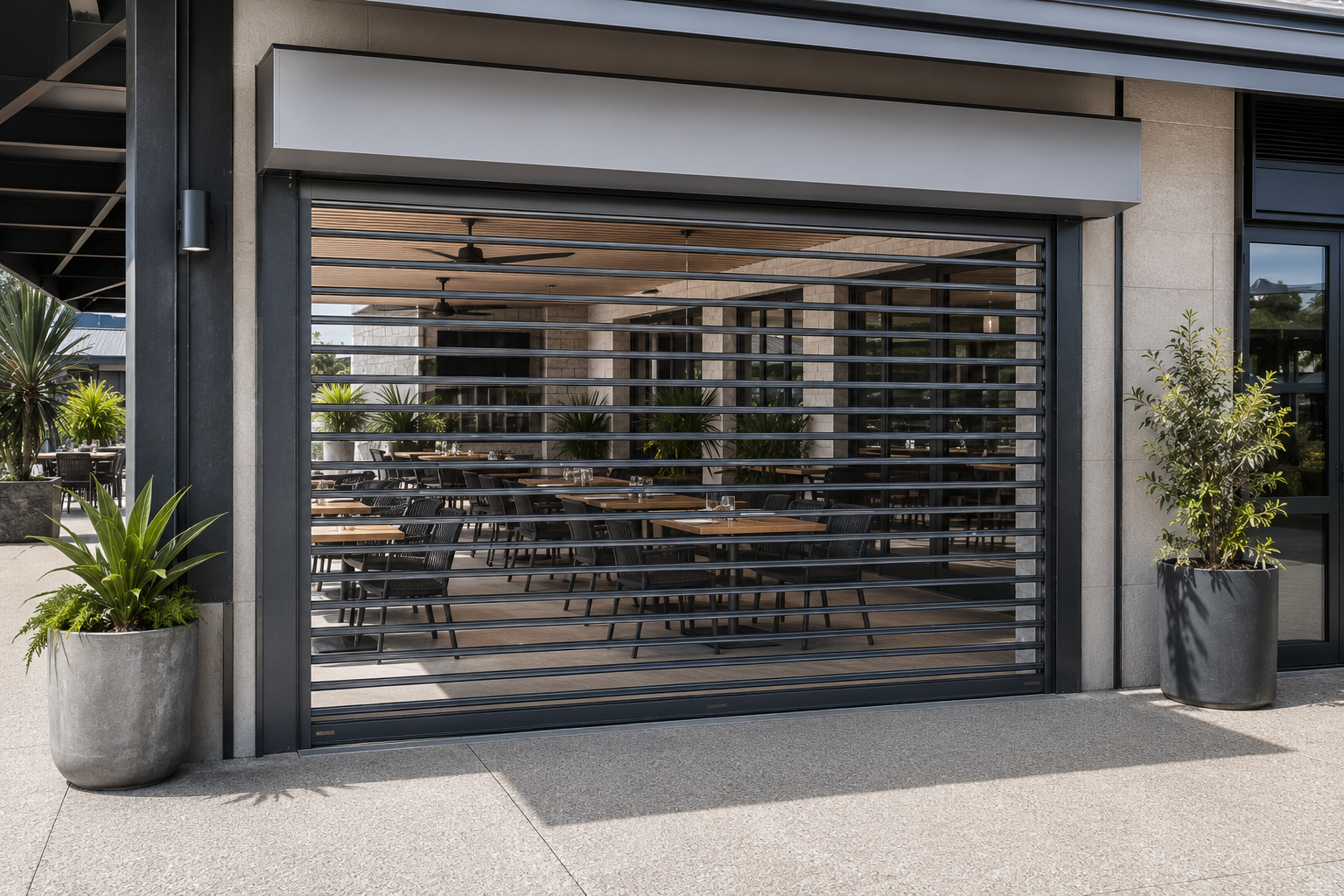

ClearView Roller Shutters Perth | Transparent Security Shutters
ClearView Roller Shutters combine a precision extruded aluminium profile with a transparent, UV-resistant polycarbonate profile, providing physical security while maintaining a permanent view through the shutter. Manufacturer documentation identifies them as suitable for a range of commercial applications, including shopfronts, cafes, restaurants, shopping centre closures and internal separation barriers, as well as selected domestic verandah and patio enclosures.
ClearView Roller Shutters are aluminium and transparent polycarbonate roller shutters manufactured for commercial and selected domestic applications, providing physical security while maintaining permanent visibility through the shutter. Suitable for shopfronts, cafes, restaurants, shopping centre closures, internal separation barriers and domestic verandah or patio enclosures, they are available with widths up to 4400mm, manual or motorised operation, and a range of powder-coated finishes. Suitability always depends on the operational requirements of the individual premises and local wind conditions, confirmed with a site assessment.
Product Highlights
Transparent Polycarbonate Profile
Maintains permanent visibility while the shutter is closed.
20% More Light and Vision
Manufacturer-stated improvement over the previous polycarbonate profile.
Commercial-Grade Construction
Double-wall extruded aluminium and polycarbonate profile for heavy-duty strength.
Wide Openings
Suitable for widths up to 4400mm.
Manual or Motorised
A range of control options to suit different applications.
5 Year Manufacturer Guarantee
Applies to the roller shutter, subject to the manufacturer’s terms.
Why Choose ClearView Roller Shutters?
Many businesses and homeowners want to secure an opening without losing the outlook, natural light or presentation that a solid shutter would block. ClearView Roller Shutters are designed for exactly this situation. The transparent polycarbonate profile allows visibility, light and a sense of openness through the curtain while the underlying aluminium and polycarbonate construction still provides a genuine physical security barrier.
Manufacturer documentation identifies ClearView as suitable for commercial premises such as shopfronts, cafes and shopping centres, as well as selected domestic applications such as verandah and patio enclosures. The right choice always depends on the opening, the operational priorities involved and local wind conditions, confirmed with a site assessment.
What Makes ClearView Roller Shutters Different?
The defining difference is the transparent polycarbonate profile. Where a standard roller shutter uses a solid aluminium curtain, ClearView Roller Shutters combine a 36mm aluminium profile with a 60mm transparent, UV-resistant polycarbonate profile, incorporated directly into the curtain rather than added as a separate feature.
According to the manufacturer, the newer polycarbonate profile provides approximately 20% more light and vision than the previous design, alongside improved rigidity. This allows continued visibility through the closed shutter while the underlying construction remains a genuine commercial-grade security barrier.
The manufacturer notes that the polycarbonate slat profile will show signs of wear over time. This is considered normal wear and tear and occurs with polycarbonate products generally, not a defect specific to ClearView.
Where Are ClearView Roller Shutters Commonly Used?
ClearView Roller Shutters are suitable for a range of commercial and selected domestic environments, per the manufacturer’s own documented applications:

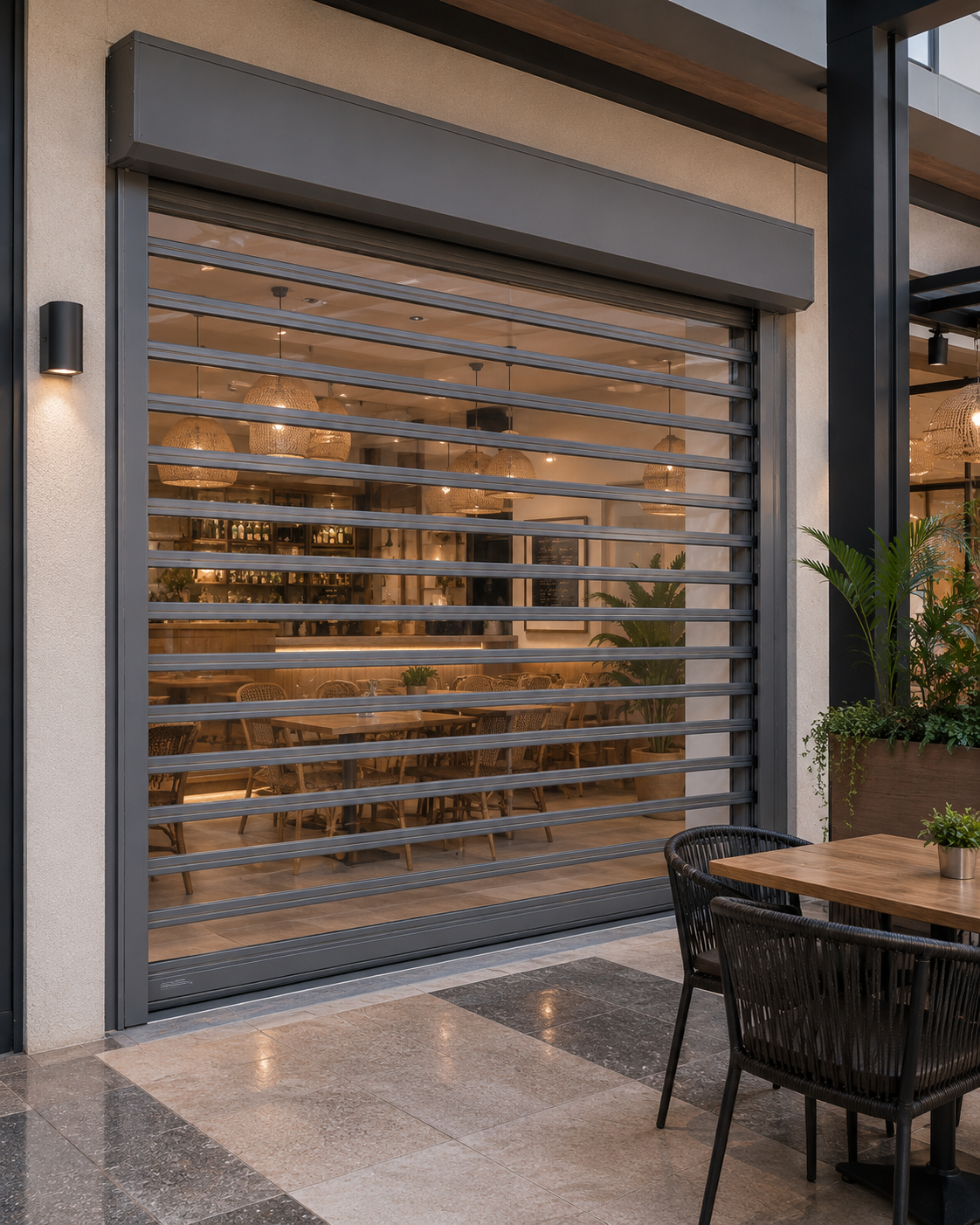

Terrace Restaurants and Cafes.

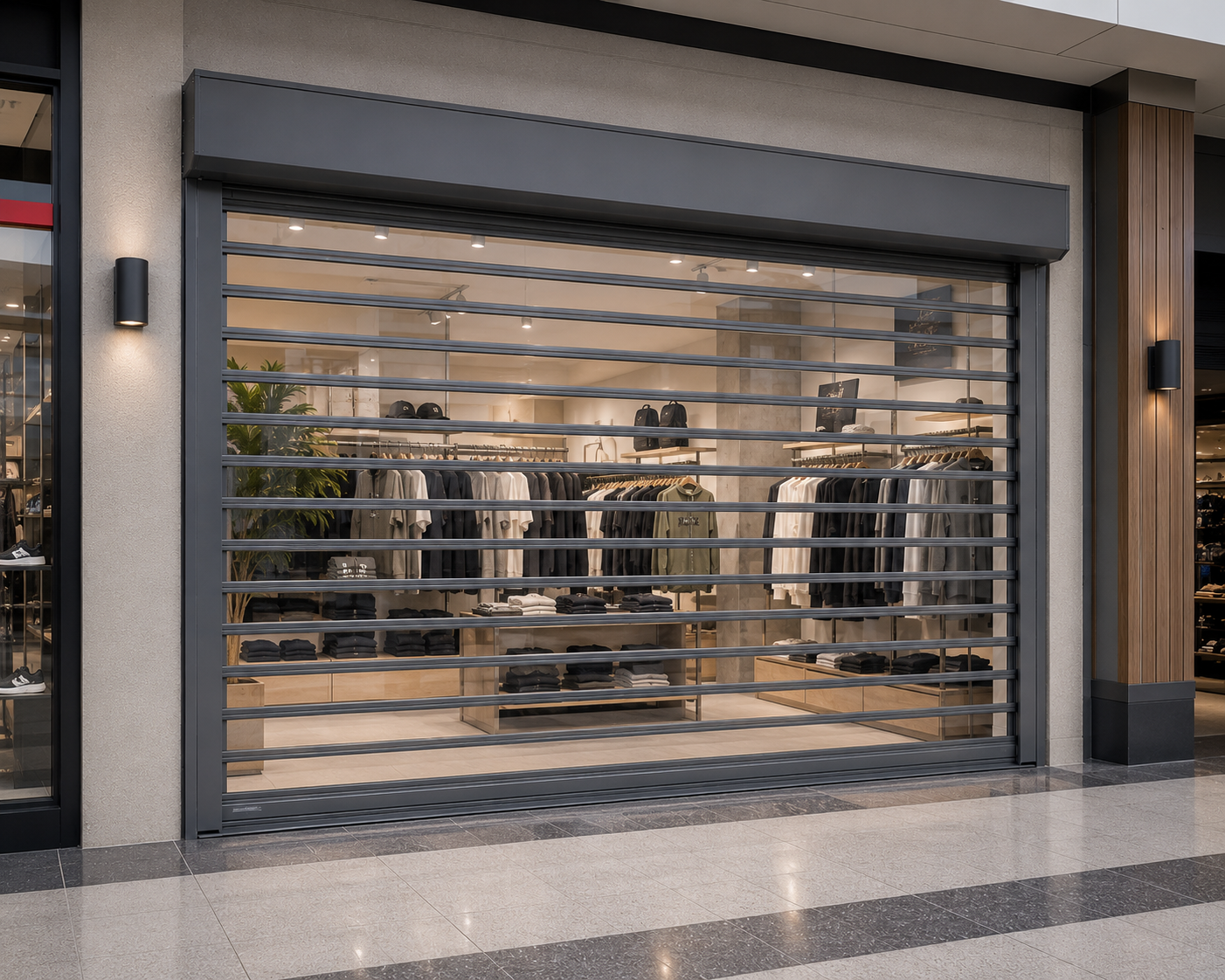

Shopping Centre Closures.
Internal separation barriers
Counter Tops and Serveries.

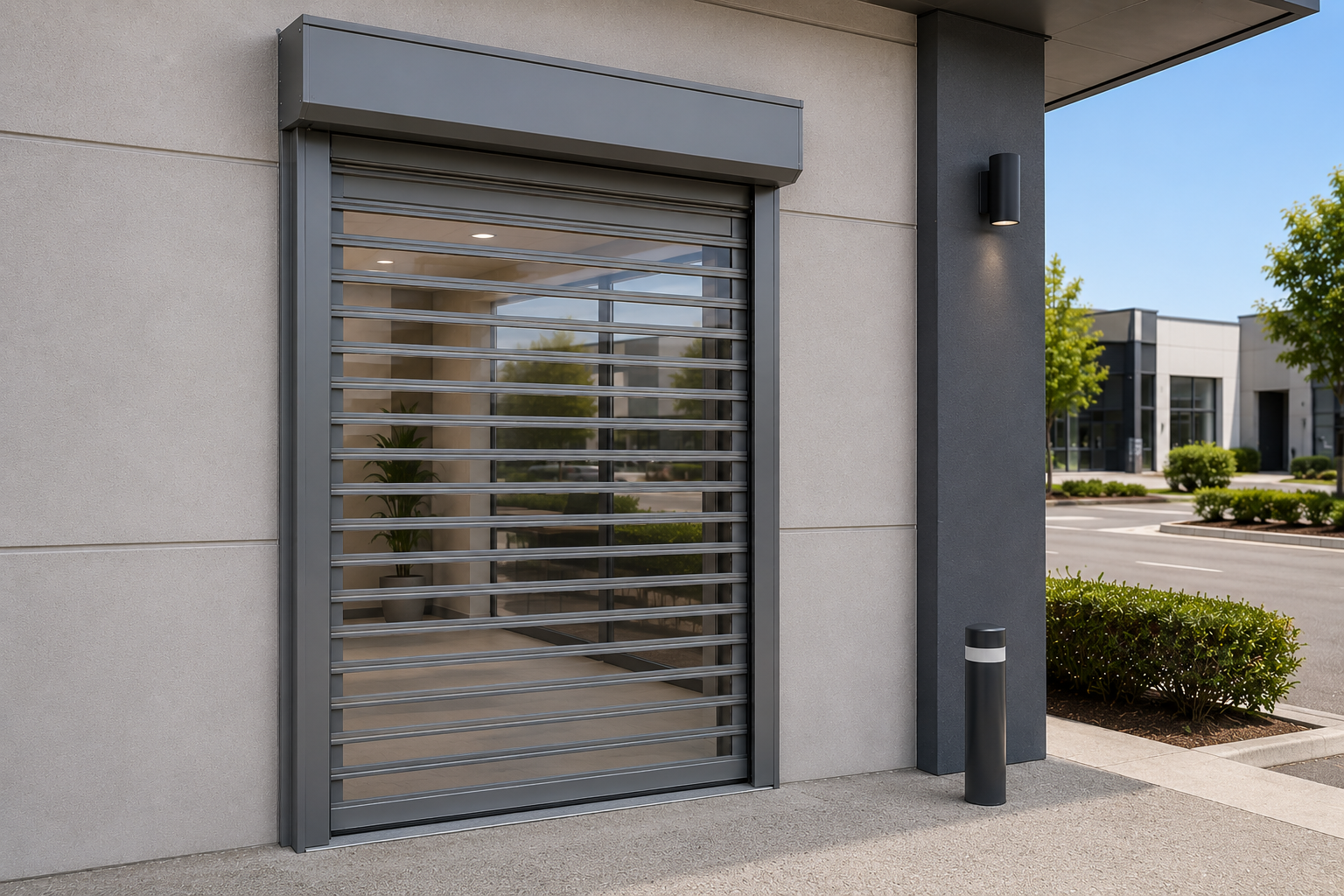

Commercial Shopfronts and Entrances.

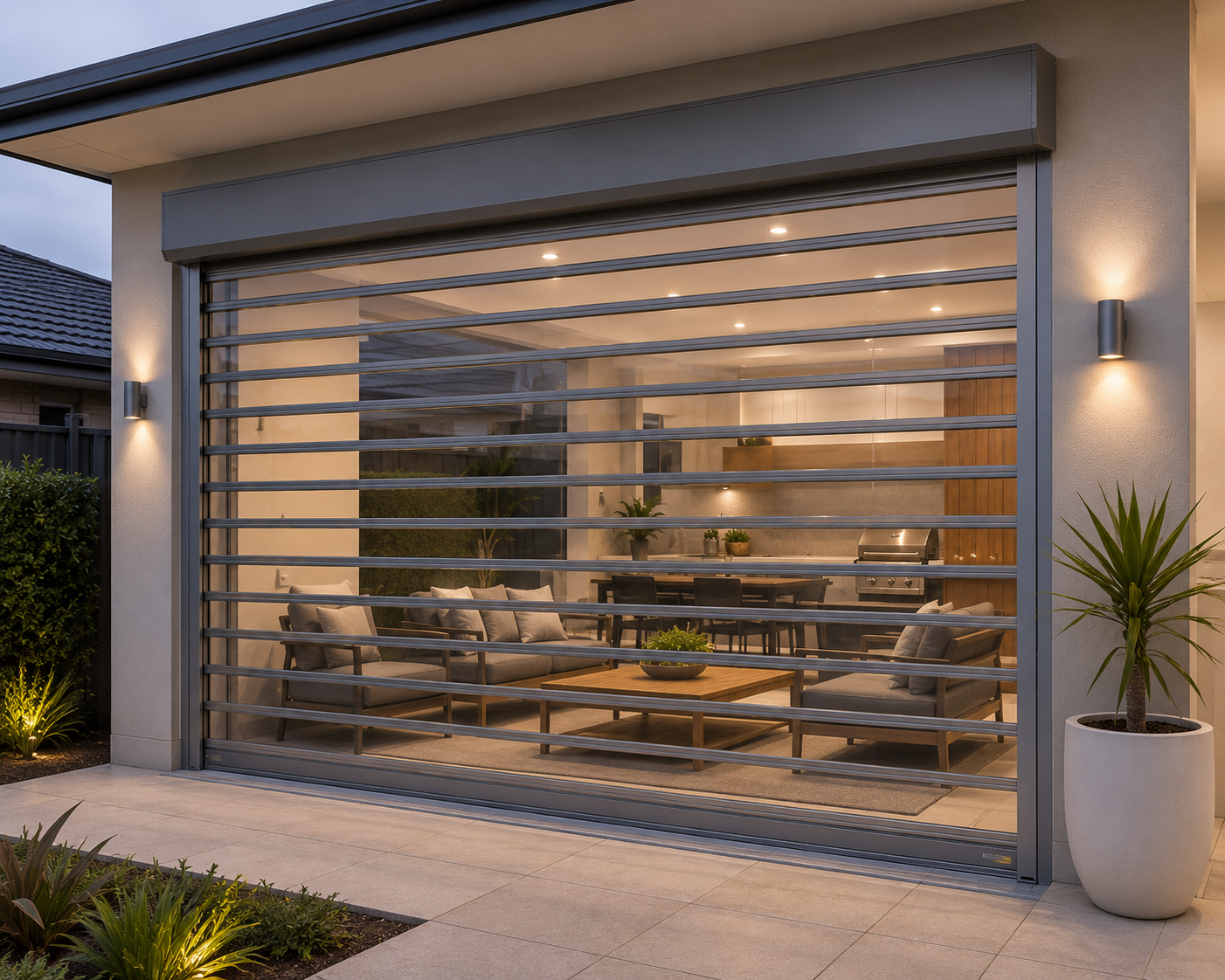

Domestic verandah and patio enclosures
Suitability should always be assessed against the operational requirements of the individual premises and local wind exposure.
How ClearView Roller Shutters Are Constructed
A typical ClearView Roller Shutter system includes:
- Precision Extruded Aluminium Profile. Commercial-grade, double-wall extruded construction for heavy-duty strength.
- Transparent UV-Resistant Polycarbonate Profile. 60mm profile providing permanent visibility.
- Heavy-Duty Steel Axle. Minimum roll 100mm, with high-quality internal sealed bearings.
- High-Rigidity Bottom Bar. 60mm x 11.5mm, compatible with a bottom bar foot.
- Heavy-Duty Guide System. 68mm x 25mm/14mm.
- High-Quality Powder-Coated Finish. For maximum abrasion resistance.
- Roll-Tight Design.
- Fully Retractable Enclosed Pelmet.
ClearView Roller Shutters are manufactured in Australia.
Technical Specifications
The figures below are the verified manufacturer specifications for the EasyView profile used in ClearView Roller Shutters:
Maximum Shutter Width
4400mm.
Maximum Shutter Height
3000mm.
Maximum Surface Area
10m².
Curtain Weight
4.7kg per square metre.
Slats per Metre
11.6 (combined aluminium and polycarbonate).
Profile
36mm aluminium / 60mm polycarbonate, 9.3mm/4mm thickness.
Axle
Steel, minimum roll 100mm.
Bottom Bar
60mm x 11.5mm.
Guides
68mm x 25mm/14mm, heavy duty.
All dimensions are manufacturer figures, indicative only, and may vary in certain applications, for example wide openings without a solid structure behind the shutter. A site assessment confirms the specification for your premises.
Colours and Appearance
Profile colours: Cream, Magnolia Cream, Clear Beige, White, Shale Grey, Black, Monument, Anodised Silver, Woodland Grey, Clear Polycarbonate, Tinted Polycarbonate.
Pelmet, side frame, guide and bottom bar colours: Cream, Magnolia Cream, Clear Beige, White, Shale Grey, Brown, Black, Monument, Woodland Grey.
Powder-coated finishes are available. Coastal Treatment for side frames is strongly recommended for premises close to the beach or other salt-water environments, and should be requested at the time of order.
Manual or Motorised Operation?
Manual Operation. Available via a spring-loaded system with a key lock (up to 3.2m wide), a steel cable winder rated up to 50kg, or a crank handle with gear ace (up to 30kg).
Motorised Operation. Available through several 240V options, including a remote control, wall switch, key switch, and a crank handle with manual override motor, plus a multi-function key-ring transmitter with radio receiver and control unit. Two 12V options, a SolarSmart Plus automation system and a PowerSmart control system, both rated up to 50kg, suit installations without convenient mains power access. All control equipment of this kind must be installed in an indoor environment.
For automated installations, the manufacturer recommends photo safety cells, a safety brake, or a safety edge, particularly where the shutter is not in full view of the person operating it, for example when using a remote control or a wall switch positioned away from the shutter. Where a wall switch is used, a spring-return (deadman) switch is recommended.
The most appropriate control option depends on the size and weight of the curtain, confirmed during the quotation process.
Key Benefits
ClearView Roller Shutters combine genuine security with everyday practical benefits businesses and homeowners value:
Permanent Visibility
Continued outlook through the closed shutter.
Increased Natural Light
More light through the transparent profile than a solid curtain.
Physical Security
A genuine aluminium and polycarbonate barrier, not a decorative screen.
Modern Commercial Appearance
A sleek, contemporary presentation.
5 Year Manufacturer Guarantee
Applies to the roller shutter, subject to the manufacturer’s terms and conditions.
No benefit is described as absolute or guaranteed beyond what the manufacturer states. Actual visibility depends on lighting conditions and viewing angle.
Design Considerations Before Installation
Every opening differs in size, operating requirements and wind exposure. A site assessment considers the opening dimensions, wind exposure, and the pelmet size required for the shutter height, since the manufacturer’s pelmet size determines the maximum achievable shutter height:
| Pelmet Box Size | Max. Shutter Height (incl. pelmet) |
|---|---|
| 180mm | 1400mm |
| 205mm | 1600mm to 2100mm |
| 230mm | 2400mm to 2900mm |
| 250mm | 3200mm to 3500mm* |
* Exceeds the manufacturer’s recommended maximum shutter height and may only be allowed if other technical specifications are met. This table is manufacturer sizing data, provided as a design guide; the correct pelmet size for a given installation is confirmed by CW Products or a PRSB site assessment, not selected from this table alone.
Additional factors considered during a site assessment include building design, customer or household access, power availability for motorised systems, and how frequently the shutter will be operated.
ClearView Roller Shutters in Perth Conditions
Perth’s commercial precincts and outdoor living areas share a common requirement: a shutter that provides real security without losing the light, outlook or presentation that makes a shopfront, cafe frontage or verandah enclosure work. ClearView Roller Shutters are one way to meet this, though wind exposure is an important factor for any installation, particularly in exposed coastal or elevated locations.
The manufacturer states that ClearView is suitable for internal and external use in low to medium wind environments, and recommends consulting a professional engineer or CW Products for installations exceeding 25 km/h. The manufacturer also publishes the following operating guide, showing how maximum shutter width reduces as wind speed increases; this is manufacturer design data, not a formal wind-load certification:
| Wind Speed | Maximum Shutter Width | Maximum Surface Area |
|---|---|---|
| 40 km/h | 4400mm | 10m² |
| 46 km/h | 3520mm | 10m² |
| 56 km/h | 3060mm | 9.18m² |
| 73 km/h | 2670mm | 8.01m² |
Coastal Treatment for side frames is strongly recommended for installations close to the beach or other salt-water environments. A site assessment confirms the appropriate specification for your location.
Is ClearView the Right Choice?
ClearView May Suit You When
- You want customers or household members to retain a view through the shutter when closed
- Natural light through the closed shutter is a genuine priority
- Your opening falls within the manufacturer’s engineered width, height and wind-exposure limits
- Your application matches a manufacturer-supported use, such as a shopfront, cafe frontage, shopping centre closure or verandah/patio enclosure
A Solid Roller Shutter May Be More Suitable When
- Maximum concealment of the opening is the priority
- Visibility through the shutter is not wanted
- The installation is in a high-wind location exceeding the manufacturer’s published limits
A site assessment confirms whether ClearView or an alternative roller shutter genuinely suits your premises.
Professional Installation Matters
Because ClearView Roller Shutters are a genuine security product, professional installation is directly relevant to reliable long-term performance:
Accurate Measurement
Confirming exact opening dimensions and pelmet size before manufacture.
Guide Alignment
Correct installation of the guide system.
Motor Selection
Sizing and installing the operating system correctly, where motorised.
Safety Device Installation
Fitting photo safety cells, a safety brake or a safety edge where recommended for automated installations.
Operational Testing
Testing the shutter through multiple cycles before handover.
A professional installer confirms the finished installation meets the manufacturer’s own specifications.
Looking After ClearView Roller Shutters
Routine maintenance helps maintain reliable operation and appearance over time:
Cleaning the Curtain
Wash the aluminium and polycarbonate profile with mild detergent and water.
Clearing Guide Channels
Keep guides free of dirt and debris.
Inspecting Components
Check the curtain, guides and bearings periodically for wear.
Expected Polycarbonate Wear
The manufacturer states the polycarbonate profile will show signs of wear over time; this is normal and occurs with polycarbonate products generally.
Servicing Motorised Components
Arrange servicing if the motor develops noise or operational issues.
Maintenance intervals vary depending on environmental exposure and how frequently the shutter is used.
Choosing the Right ClearView Solution
ClearView Roller Shutters and other roller shutter profiles in the PRSB range are designed for different priorities. Where a solid shutter is generally suited to applications where maximum concealment is preferred, ClearView is intended where visibility, light and presentation matter alongside security. Selecting the appropriate product depends on the operational needs of the premises. Factors that may influence product selection include:
Opening Dimensions
Confirmed against the manufacturer’s engineered width and height limits.
Wind Exposure
Assessed against the manufacturer’s published wind-speed guide.
Presentation Priorities
Whether continued visibility genuinely matters to the application.
Manual or Motorised Operation
Matched to how the shutter will be used.
Colour Coordination
Matched to the shopfront, building facade or home exterior.
A site assessment helps determine the most suitable configuration for each premises.
Why Choose Perth Roller Shutters & Blinds
Specifying a transparent roller shutter correctly depends on more than the profile itself. Accurate measurement, correct installation and honest guidance on whether ClearView or a different roller shutter genuinely suits your premises all matter.
Evidence-Based Product Advice
Recommendations grounded in the manufacturer’s own published specifications.
Commercial and Domestic Installation Experience
Familiarity with both shopfront and verandah/patio installation requirements.
Professional Installation
Correct installation so the specified configuration performs as intended.
Ongoing Support
Servicing and maintenance pathways for motorised systems.
Site-Specific Measurement
Every recommendation based on a professional assessment of your premises.
Request Professional Advice
Choosing the right ClearView installation depends on the opening size, wind exposure, visibility expectations and installation environment.
Frequently Asked Questions
Common questions about ClearView Roller Shutters for Perth commercial and outdoor living applications.
ClearView Roller Shutters are aluminium and transparent UV-resistant polycarbonate roller shutters, combining physical security with permanent visibility through the shutter.
Yes. The product is specifically designed to provide permanent visibility through the transparent polycarbonate sections, with the manufacturer stating approximately 20% more light and vision than the previous profile.
Yes. Shopfronts, terrace restaurants and cafes are listed by the manufacturer as suitable applications.
Yes. Shopping centre closures are specifically identified by the manufacturer.
Yes, for verandah and patio enclosures specifically. The manufacturer supports this as a domestic application; ClearView is not marketed as a general residential window or door security product.
Yes. Manual operating systems include spring-loaded, cable winder and crank handle options.
Yes. Multiple motorised control options are published by the manufacturer.
No. The manufacturer advises that installations exceeding 25 km/h should be assessed by a professional engineer or CW Products. The manufacturer also publishes an operating guide showing maximum shutter width reduces at higher wind speeds, for example from 4400mm at 40 km/h down to 2670mm at 73 km/h. This is manufacturer design data, not a formal wind-load certification, and does not replace a site-specific assessment.
The published maximum shutter width is 4400mm, reducing at higher wind speeds per the manufacturer’s operating guide.
The manufacturer provides a 5 year roller shutter guarantee. Specific terms and conditions, and what the guarantee covers, should be confirmed with your PRSB representative at the time of quotation.
