Widespan Roller Shutter

Functional

Secure Versatile

Uncover the versatility of the Widespan Roller Shutters, an aluminum masterpiece perfect for residential and light commercial settings. Whether for patios, outdoor areas, or garage entrances, this shutter effortlessly blends strength with practicality, guaranteeing top-notch performance across a range of uses. Enhance your spaces with added security and sophistication, thanks to the Widespan Roller Shutters.

Request a Quote

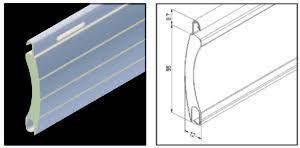

Slat Profile

Features

Premium aluminium alloy construction
Foam-filled 55mm profile for additional strength and security
Superior painted finish
Smooth and curved face profile
Roll-tight design
Wide range of colours
Double-coated and lacquer for an abrasion-resistant finish
Heavy-duty steel axle with high-quality internal sealed bearings
Suitable for widespan widths up to 4500mm
Can be manually operated or motorised
Available with smartphone App control options
Made in Australia

Benefits

Up to 70% noise reduction
Up to 15° cooler in summer
Up to 15° warmer in winter
Up to 98% light block out
Up to 40% more energy efficient
Secure, built-in locking mechanism
Eliminates condensation
Reduces glare
Rust prevention: 90% components aluminium

Suitable Applications

Patio
Alfreso
Garage Door
Light Commercial Shop Fronts
Light Commercial Applications for Businesses

TECHNICAL SPECIFICATIONS

Maximum Shutter Width	3600mm
Maximum Shutter Height	3000mm
Maximum Surface Area	10 Sq Meter
Curtain Weight /Sq Meter	4 kg
Number of Slats/Meter	18
Profile Slat Covering	55mm
Profile Slat Thickness	12mm
Axle Type	Octagonal Steel
Bottom Bar Dimensions	55mm x 8.5mm
Guide Dimensions	68mm x 25mm
Paint Finish	Polyurethane/Polyamide
Inner Profile Foam Type	Poly Urethane (CFC Free)

PELMET SIZES AND MAXIMUM SHUTTER HEIGHT

Pelmet Box Sizes	Max. No. of Slats	Max. Shutter Height	Axle Size
180mm	32	1850mm	70mm
205mm	42	2400mm	70mm
230mm	53	2200mm	70mm
205mm	60	3000mm	70mm

WIND SPEEDS & MAXIMUM SHUTTER WIDTH

Wind Speeds km/h	Max Shutter Width	Max Surface Area
40km/h	3200mm	8 sqm
46km/h	3010mm	8 sqm
56km/h	2550mm	6.63 sqm
72km/h	2180mm	5.56 sqm
93km/h	1900mm	5.17 sqm
125km/h	1700mm	4.42 sqm

White: Bright White – Not Similar to Colorbond® Surfmist
Grey: Similar to Colorbond® Shale Grey
Cream
Sand: Similar to Colorbond® Paperbark
Black: Similar to Colorbond® NightSky
Woodland Grey: Colorbond®
Deep Ocean: Colorbond®
Green: Similar to Colorbond® Cottage Green
Red: Similar to Colorbond® Manor Red
Monument: Colorbond®
