ClearView Roller Shutter


Sleek

Modern

Cost Effective

Constructed from an extruded aluminium and transparent, UV resistant polycarbonate profile, Defender Roller Shutter is a strong roller shutter system that provides security without compromising the view. Offer you a roller shutter that provides added security and a permanent view of the outside and inside.

Request a Quote

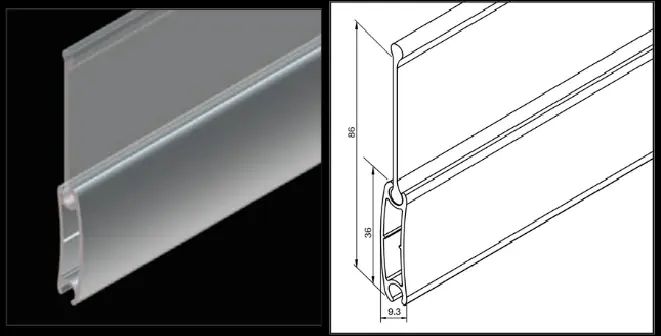

Slat Profile

Features

  • High-quality and strong aluminium alloy and polycarbonate construction
  • Commercial grade double wall extruded profile for extra strength
  • UV resistant 60mm polycarbonate profile
  • Premium powder coated finish for maximum abrasion resistance
  • Roll-tight design
  • Wide range of colours
  • Durable heavy-duty steel axle with superior internal sealed bearings
  • High rigidity bottom bar
  • Fully retractable into an enclosed pelmet
  • Suitable for widespan widths up to 4400mm
  • Can be manually operated or motorised
  • Made in Australia

Benefits

  • Offers protection with a view
  • Restrict debris from entering
  • Provide 20% more light

Suitable Applications

  • Shopfronts
  • Shopping centre grilles
  • Terrace restaurants and cafes
  • Countertops and serveries
  • Internal separation barriers and doorways
  • Any other area where both visibility and security are paramount

TECHNICAL SPECIFICATIONS

Maximum Shutter Width4400mm
Maximum Shutter Height3000mm
Maximum Surface Area10 Sq Meter
Curtain Weight /Sq Meter4.7 kg
Number of Slats/Meter11.6
Profile Slat Covering36mm
Profile Slat Thickness9.3mm
Axle TypeOctagonal Aluminium Or Steel
Bottom Bar Dimensions60mm x 11.5mm
Guide Dimensions68mm x 25mm
Paint FinishPowder Coat Finish


PELMET SIZES AND MAXIMUM SHUTTER HEIGHT


Pelmet Box SizesMax. No. of SlatsMax. Shutter HeightAxle Size
180mm161400mm130mm
205mm181600mm130mm
205mm242100mm130mm
2230mm382400mm130mm

230mm

34

2900mm

130mm

250mm

37

3200mm

130mm

250mm

41

3500mm

130mm

  • White: Bright White – Not Similar to Colorbond® Surfmist
  • Grey: Similar to Colorbond® Shale Grey
  • Cream
  • Sand: Similar to Colorbond® Paperbark
  • Black: Similar to Colorbond® NightSky
  • Woodland Grey: Colorbond®
  • Deep Ocean: Colorbond®
  • Green: Similar to Colorbond® Cottage Green
  • Red: Similar to Colorbond® Manor Red
  • Monument: Colorbond®

Effortlessly Order Roller Shutters With The Most Streamlined Process Available.

Request A Measure & Quote

We can provide a confirmed Quotation based on your estimated opening sizes or we can measure and quote at no cost to you

Confirm The Order

Log into your Account and confirm your Order. Pay deposit over the phone or online to be placed in our system

We Make & Install

We will be onsite to measure accurate opening sizes and will contact you to schedule for installation convenient to you
